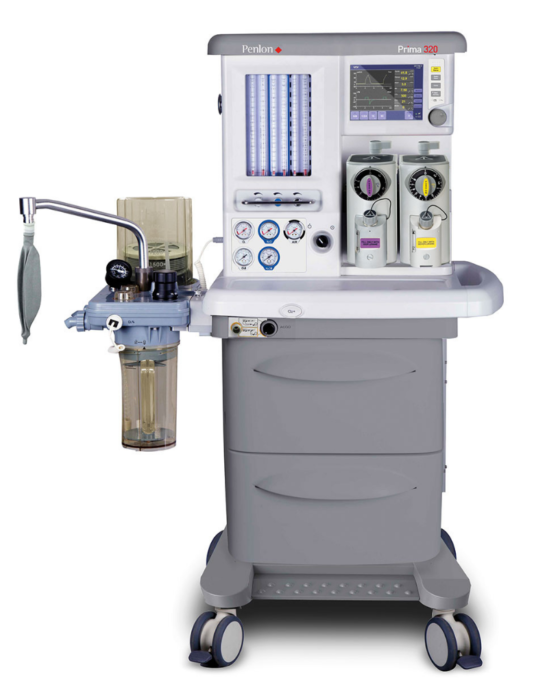

Gradian Prima | Anesthesia Machine
The Prima anesthesia machine is a high specification anesthetic machine providing the ideal solution for today’s busy operating room.
KEY FEATURES & BENEFITS
- Broad Patient Support: Suitable for adult, pediatric and neonatal patient profiles. Eight ventilation modes are available (VCV, PCV, PRVC, SPONT/PSV, SIMV-V, SIMV-P, SIMV-PRVC, and Manual) with PEEP available in all modes except Manual.
- Enhanced Monitoring: 10.4” TFT color touchscreen ventilator display with navigator wheel and audio/visual indicators. Choice of up to 10 waveform and respiratory loop displays. Optional mainstream anesthetic gas and sidestream CO2 and SpO2 monitoring.
- Robust Gas Management: Cylinder yokes and pipeline connections, with integrated mechanical anti-hypoxic device. Automatic ventilator drive gas switching between air or oxygen. Absorber with integrated heater and bypass, allowing for mid-ventilation soda lime replacement. Active AGSS for disposal of waste gas.
- Additional Accessories: Patient cable management arm to reduce clutter, oxygen therapy outlet for recovery and safety, and optional suction controller kit to keep airways clear.
Prima Specifications
VENTILATION
Modes: VCV, PCV, PRVC (PCV-VG), SIMV-P, SIMV-V, SIMV-PRVC,
SPONT/PSV, Manual
Bellows: Universal (adult and peds)
Drive gas: O2/Air - automatic switch
Tidal volume: 10 - 1500 mL
Insp. pressure: 5 - 70 cmH2O
Max flow: 120 L/min
Resp. rate: 1 - 100 bpm
I:E ratio: 4:1 - 1:10
Insp. pause: 0 - 60%
Flow sensors: Insp. and Exp. (reusable)
MONITORING
Standard: PEEP, Pmean, Pplat, Ppeak, VTi, VTe, Ftotal, Fspn, MV, MVspn, Rst, Cdyn, I:E, FiO2
Optional: EtCO2, SpO2, Pulse
Waveforms: Flow, Volume, PAW, P-V Loop, V-F Loop, CO2 (optional), Pleth (optional)
VAPORIZERS
Agents: Sevoflurane, Isoflurane, Halothane
Type: Selectatec-compatible; Key fill, Quik-Fill, or pour fill
FLOWMETERS
Type: Dual-tube cascade
Source gases: O2, Air, N2O
Nitrous cut-off: Mechanical, integrated AHD
ELECTRICAL AND GAS SUPPLIES
Input voltage: 100 - 240 VAC, 50/60 Hz
Battery: Approx. 2 hr backup
Gas input connections: 3 × pipeline; 2 × pin-indexed cylinder
Pipeline input: DISS or NIST, 280 - 600 kPa (40.6 - 87 psi)
PHYSICAL DIMENSIONS
Dimensions: 1410 × 950 × 650 mm
Weight: 110 kg (243 lb)
Display: 10.4 in TFT color touchscreen
Storage: 2x drawers, work surface
Absorber: 1500 mL capacity
ENVIRONMENTAL
Temperature: +10°C - 40°C (Operation); -20°C - 55°C (Storage) "
Humidity: 10 - 95% RH
Atmospheric pressure: 70 - 106 kPa (Operation); 50 - 106 kPa (Storage)
