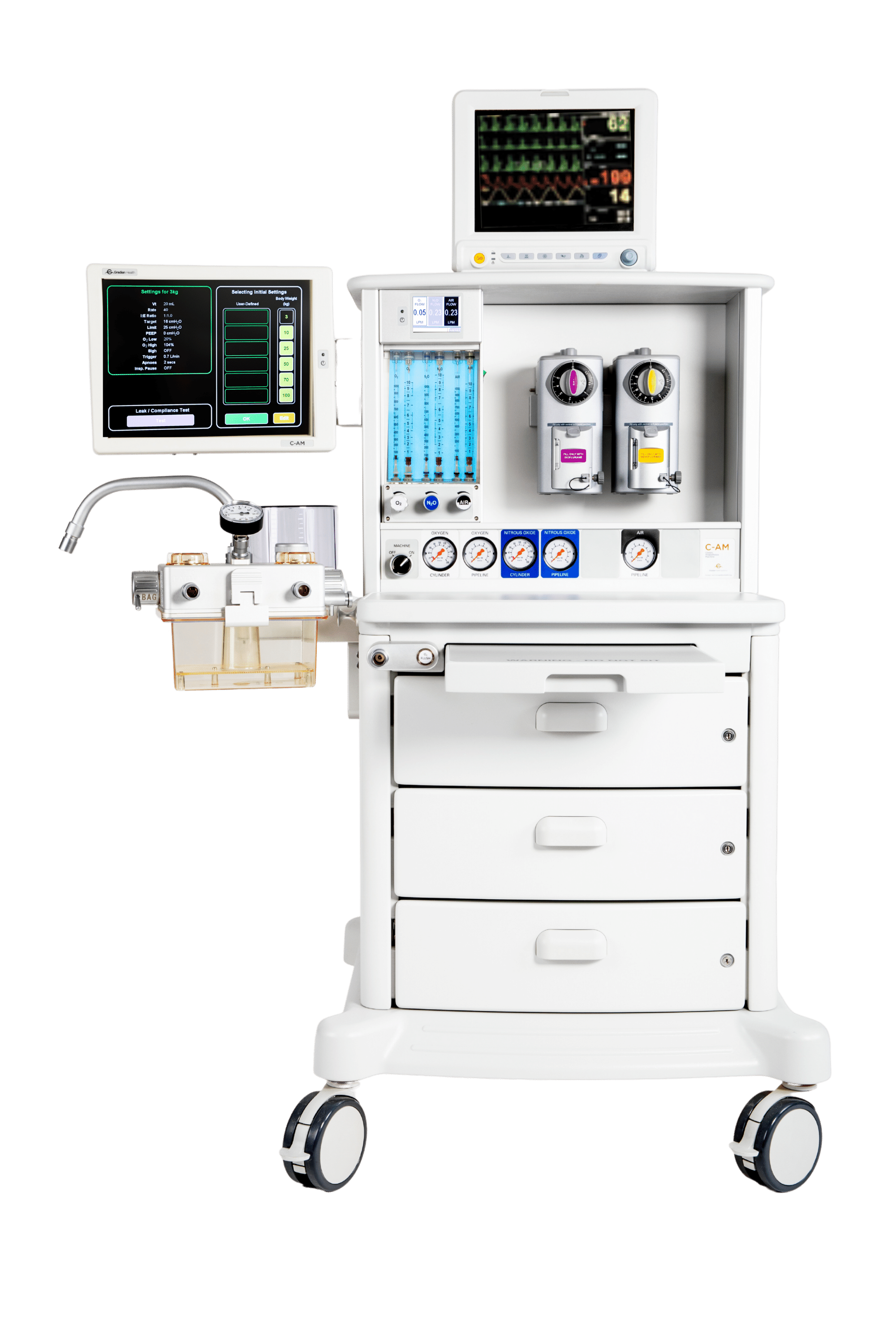

Advanced Anesthesia Delivery

The Gradian C-AM offers a versatile range of specifications, features, and configurations, combining the benefits of an integrated system with the flexibility and ease of use of a modular design.

Patient Monitoring

Equipped with patient vital signs monitor (temperature, BP, ECG, SpO2, and EtCO2), all with rechargeable battery backup

Integrated Ventilator

Touch-screen ventilator with eight advanced modes and waveform display provides ventilation for adult, pediatric, and neonatal patients

Two-Station Backbar

Includes two Selectatec-compatible vaporizers—Halothane, Isoflurane, or Sevoflurane—for maximum flexibility

Real-Time Agent Monitoring

Full gas analyzer provides identification and measurement of anesthetic agents, as well as N2O and O2

Gas Monitoring Precision

Three backlit dual-tube flow meters and Electronic Flow Monitor (EFM) enable provider to control the amount of oxygen, nitrous oxide, and medical air delivered to the patient

Storage Options

Three lockable drawers, extendable writing surface, and a T-slot accessory mounting system

C-AM Specifications

See below to view a list of specifications for the C-AM, or click on Resources to download a printable version.

C-AM Specifications

Vaporizers

• Comes with 2 Selectatec-compatible vaporizers, choice of Halothane, Isoflurane, or Sevoflurane
• 250 mL agent capacity, Key Filler

Gas Sources & Monitoring

• Pipeline Sources: NIST – O2, N2O, Air;
Supply pressure 400 kPa (58 psig) +/- 10%
• Cylinder Yokes: Pin index – O2, N2O;
Supply pressure 13700 kPa (2000 psig) +/- 10%
• Flowmeters: Dual flow tubes (100 – 1000 mL/min, 1 – 10 L/min) and Electronic Flow Meter
• O2 Monitoring: Permanent paramagnetic sensor
• CO2 Monitoring: Integrated infrared sensor
• Agent Monitoring: N2O, Halothane, Isoflurane, Sevoflurane, Enflurane, Desflurane

Gas Outlets

• AGSS receiving unit
• Auxiliary O2 outlet (Mini Schrader)

Patient Monitoring

• ECG, RR, Temp, NIBP, HR, SpO2, EtCO2
• Rechargeable battery backup for all monitoring

Absorber

• 1.4kg (1600 mL) soda lime capacity
• Manual (BAG) and ventilator (VENT) modes

Ventilator Modes

• Spontaneous mode
• Cardiac Bypass
• Volume Control
• Pressure Control
• Pressure Control with Vol. Guarantee
• Synch. Mandatory Minute Volume (SMMV)
• Synch. Intermittent Mandatory Volume (SIMV)
• PSV – Plus (intelligent switching to SIMV)

Ventilator Settings

• Tidal Volume: 20 – 1500 mL
• Target Pressure: 10 – 50 cmH2O
• Respiratory Rate: 4 – 100 BPM
• I:E Ratio: 1:0.5 to 1:6
• PEEP: 5 – 20 cmH2O
• Pressure Support: 3 – 20 cmH2O*
• Minute Volume: 1 – 20 L/min
* PEEP referenced

Ventilator Features

• 15.4” color TFT touchscreen
• Color-coded waveforms and intuitive interface
• Default patient profiles by ideal body weight
• 6 user-configurable patient profiles
• 4-hour battery backup
• Case timer with stop/reset

Storage & Footprint

• 3 lockable drawers, extendable writing surface, top shelf, T-slot accessory mounting
• Size: 73 cm x 67 cm x 130 cm, 110 kg

Power & Use Environment

• Mains Power: 100 – 240 VAC, 50-60Hz
• Max Current: 1.2A@100V, 0.4A@240V
• 4 fused auxiliary power outlets
• Battery Backup: Up to 4 hours
• Operating Temperature: 15oC – 35oC
(59oF – 95oF)
• Operating Humidity: 0 – 95% non-condensing
• Air Pressure: 80 – 110 kPa
• Ingress Protection: IPX0
